Application：

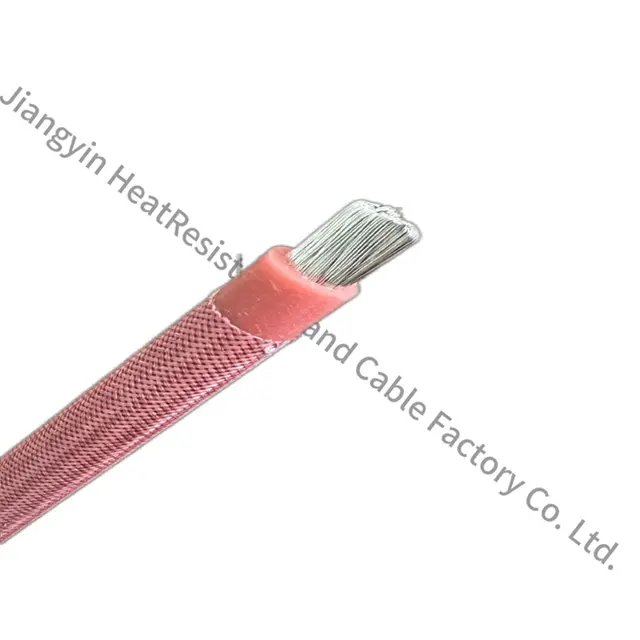

JGP cables are Connection of rotating machines windings, like motors, alternators, generators.This product family adapted for wind turbines, marine and offshore, rollingstock, photovoltaic, energy storage systems.The braided synthetic yarn covering, which is applied directly over the insulation, gives the cable, because of its short braiding pitch and high compactness, an excellent mechanical protection by maintaining good flexibility.
Cross-section | Conductor | Insulation | Outer diameter | Max resistance at 20oC |
Conductor construction No./D | Diameter | Nominal thickness | Minimum thickness | Nominal outer diameter | Tolerance | Ω/km |
mm2 | No./mm | mm | mm | mm | mm | mm | under |
16 | 126/0.40 | 5.80 | 1.6 | 1.34 | 9.00 | ±0.50 | 1.24 |
25 | 196/0.40 | 7.30 | 1.7 | 1.43 | 10.70 | ±0.50 | 0.795 |
35 | 276/0.40 | 8.60 | 2.0 | 1.70 | 12.60 | ±0.50 | 0.565 |
50 | 396/0.40 | 10.0 | 2.0 | 1.70 | 14.00 | ±0.50 | 0.393 |
70 | 558/0.40 | 11.80 | 2.2 | 1.88 | 16.20 | ±1.0 | 0.277 |
95 | 756/0.40 | 13.60 | 2.3 | 1.97 | 18.20 | ±1.0 | 0.210 |
120 | 956/0.40 | 15.20 | 2.5 | 2.15 | 20.20 | ±1.0 | 0.164 |
150 | 1194/0.40 | 17.20 | 2.7 | 2.33 | 22.60 | ±1.0 | 0.132 |
185 | 1473/0.40 | 19.00 | 3.0 | 2.60 | 25.00 | ±1.0 | 0.108 |
240 | 1910/0.40 | 21.70 | 3.1 | 2.69 | 27.90 | ±1.0 | 0.0817 |
300 | 2388/0.40 | 24.30 | 3.3 | 2.87 | 30.90 | ±1.0 | 0.0654 |
